HyperLynx DRC

HyperLynx DRC

HyperLynx DRC provides fast, automated electrical design rule checking and supports iterative design inspection. Designers can run complex checks for problems that are not easily simulated, such as traces crossing splits, signal return path issues, and compliance with electrical safety requirements.

OVERVIEW

HyperLynx DRC

HyperLynx DRC (Design Rule Checking) is a software tool used for electronic design verification. It is part of the HyperLynx family of tools, which are designed to help engineers verify and optimize their printed circuit board (PCB) designs.

HyperLynx DRC specifically is used to check the layout of a PCB design against a set of rules or design guidelines. These rules can include spacing, trace width, via size, and other design parameters. The tool flags any violations of the rules, allowing designers to identify and fix errors before the board is manufactured.

KEY FEATURES

Automating Electrical Sign-Off

HyperLynx DRC ensures design rule compliance with analog, EMI, IC packaging, power integrity, signal integrity and electrical safety requirements.

Graphical Error Reporting

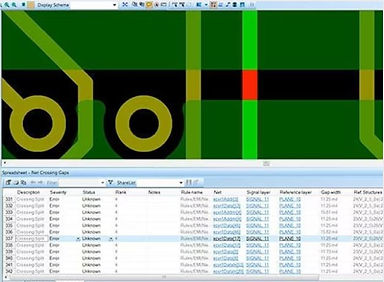

Results are presented in spreadsheet format, cross-linked to a layout view that automatically zooms and highlights to show each issue in detail. Issue lists can also be exported to popular CAD tools.

Powerful Built-In Rules

HyperLynx DRC includes 85 built-in rules in 6 groups to support multi-domain design verification. Each rule is parametizable and can be configured based on the design’s unique requirements.

Custom Rule Creation

HyperLynx DRC allows creation of new rules that leverage the powerful internal geometry processing engine to verify custom requirements. Custom rules can be shared with others in the organization.
